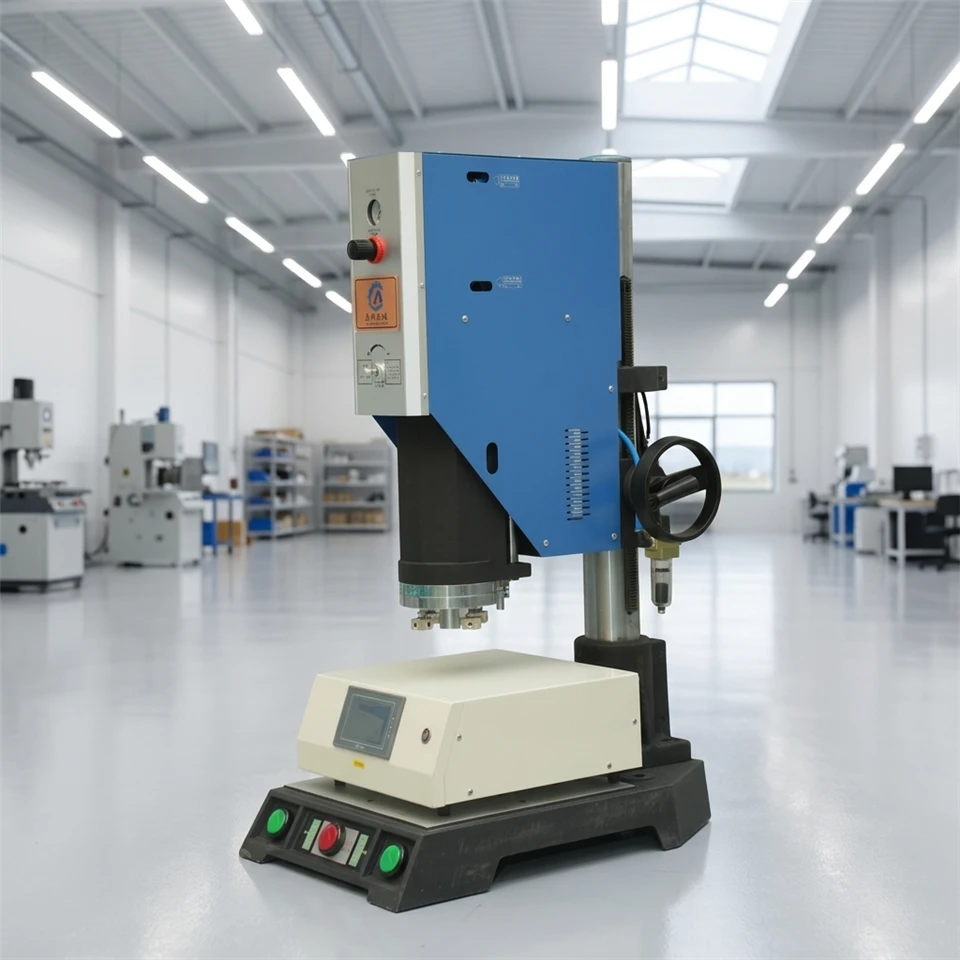

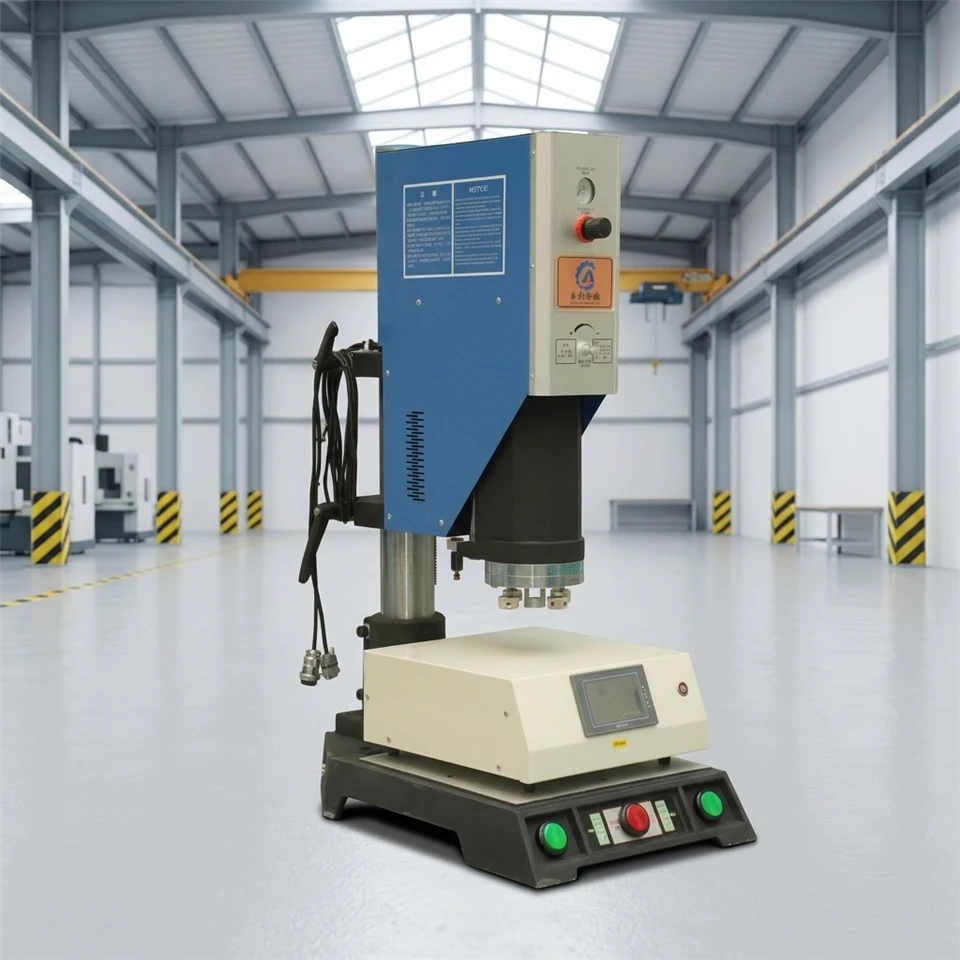

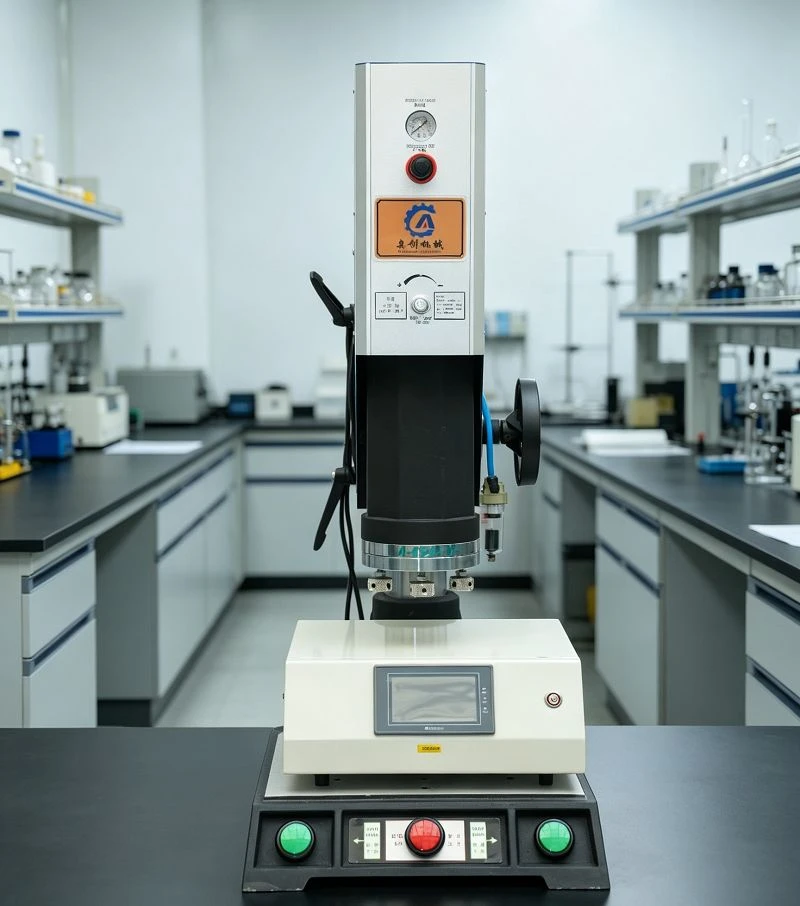

15kHz 3.2kW Desktop Ultrasonic Welder
PLC-based programmable microcomputer control system with a human-machine interface (HMI) for adjusting welding parameters.
Key Features
1. The ultrasonic welding machine features a height-adjustable frame, allowing for quick and convenient mold adjustment.
2. The ultrasonic welding machine is equipped with a frequency adjustment and automatic frequency compensation circuit.
3. The entire ultrasonic welding machine is gravity-cast and machined on CNC machines, ensuring high precision.
4. The spherical transducer mounting bracket is CNC-machined, with fine-threaded screws for horizontal fine-tuning, providing higher precision in horizontal adjustment.
5. PLC-based programmable microcomputer control system with a human-machine interface (HMI) for adjusting welding parameters.
Specifications
| Model | AC-1532 |
| Frequency | 15 kHz |
| Working Stroke | 75 mm–125 mm |
| Dimensions | L 395 mm × W 653 mm × H 1080 mm |
| Weight | 100 kg |
Product Advantages
Fast welding speed.
Ultrasonic welding rapidly heats plastic through high-frequency vibration, typically completing the weld within 0.1 to 1 second, saving more time compared to traditional welding technologies.
High weld strength.
The weld strength can reach more than 80% of the base material's strength-and even higher in some cases-while the welding process is highly stable, with weld parameters monitorable at any time.
Excellent sealing performance.
The welded joints provide excellent sealing, meeting requirements for water and dust resistance, making them suitable for applications requiring a seal.
Low cost.
The equipment and process are highly mature; no expensive fixtures or mechanical fasteners are required, and labor costs are low, making it suitable for high-volume production.
Clean and pollution-free.
No additives or adhesives are needed during the welding process, preventing the emission of harmful gases and ensuring greater safety for both the environment and operators.
Ease of operation.
The welding equipment is relatively simple to operate and requires no complex technical training; once parameters are set, the welding is completed automatically.
