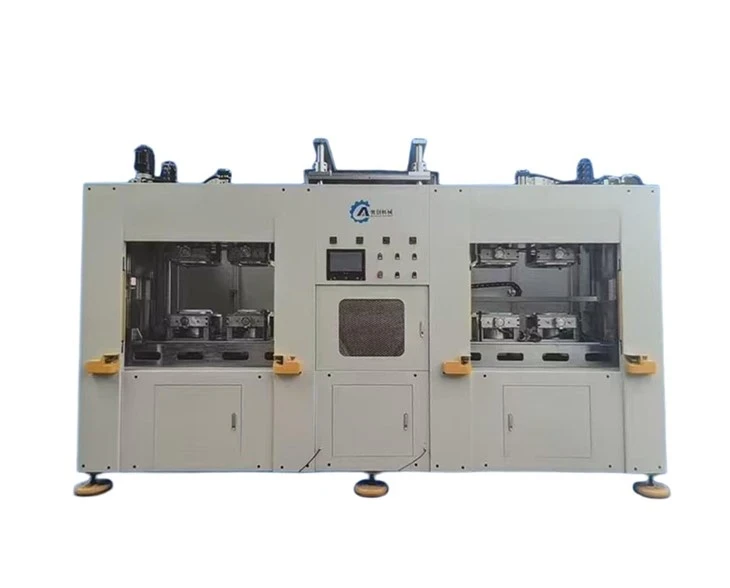

Double Station Hot Plate Welding Machine
Product Description
Our double station hot plate welding machine is developed for manufacturers that need stable plastic welding quality without allowing loading and unloading time to slow down the production line. The machine heats the joining surfaces of two thermoplastic components with a temperature-controlled hot plate. Once the material reaches the programmed melting condition, the hot plate retracts and the fixtures press the two parts together until the joint cools and solidifies. This process can create strong, consistent, and sealed welds for large housings, tanks, ducts, and other components with long or irregular welding contours.
The two-station structure is the main advantage of this double station hot plate welding machine. One station can perform the welding cycle while the other is used for loading, unloading, inspection, or fixture preparation. This overlapping workflow reduces idle time and improves equipment utilization. Depending on the application, the two stations can operate alternately or follow a coordinated production sequence. Our double station hot plate welding machine can also be integrated with conveyors, turntables, robots, leak testers, barcode readers, and MES systems for semi-automatic or fully automatic production.
Specifications
|
Welding process |
Contact hot plate welding |
|
Station configuration |
Dual working stations |
|
Heating control |
Independent multi-zone temperature control |
|
Control system |
PLC with touchscreen HMI |
|
Drive options |
Pneumatic, hydraulic, or servo |
|
Tooling |
Customized according to product drawings or samples |
|
Operating mode |
Alternating or coordinated station operation |
|
Optional functions |
Robot loading, conveyor, leak testing, barcode, and MES connection |
|
Suitable materials |
PP, PE, ABS, PC, PA, and other compatible thermoplastics |
Applications
- Automotive lamps, air ducts, reservoirs, and battery housings
- Appliance water tanks and large plastic shells
- Plastic pallets, containers, industrial trays, and covers
- Filter housings and fluid-management components
- Medical-device housings and sealed plastic assemblies
- Products requiring two fixtures or two loading positions
Factory Strength
We have focused on plastic welding equipment for approximately 30 years. Our factory covers more than 7,000 square meters and has over 60 employees. The company integrates equipment development, mechanical design, component processing, assembly, testing, sales, and technical service. Our equipment has been supplied to manufacturers and supporting companies serving Huawei, Haier, and Midea.
Customization Capability
The machine can be designed according to part drawings, samples, welding requirements, and target production capacity. We can customize the workstation distance, hot plate size, heating-zone layout, fixture structure, clamping method, loading direction, and safety enclosure. Automation interfaces can also be reserved for later production-line upgrades.
Quality Control
Each machine is inspected during component processing, assembly, electrical commissioning, and final testing. Temperature stability, station alignment, fixture movement, safety interlocks, and continuous-cycle performance are checked before packing. We conduct a 100% final inspection and accept third-party inspection.
Low Maintenance Cost
Without physical contact, there is no need to clean plastic residue from the heating plate. This dramatically reduces equipment downtime and long-term maintenance workload.
Precise Power Calibration
Infrared power and irradiation time can be finely adjusted, allowing for a more precise process window and uniform melting depth control with minimal internal stress.
Easy Operation
The equipment is designed for user-friendliness. This high-end automated model can complete complex infrared welding tasks after simple parameter setting, ensuring high workplace efficiency.
Hot Tags: double station hot plate welding machine, China double station hot plate welding machine manufacturers, factory, Dual Station Hot Plate Welder, Hot Plate Plastic Welding Machine, Hot Plate Welding, Hot Plate Welding Equipment, Infrared Hot Plate Welding Machine, Plate Welding Machine
