Pneumatic Thermal Welding Machine

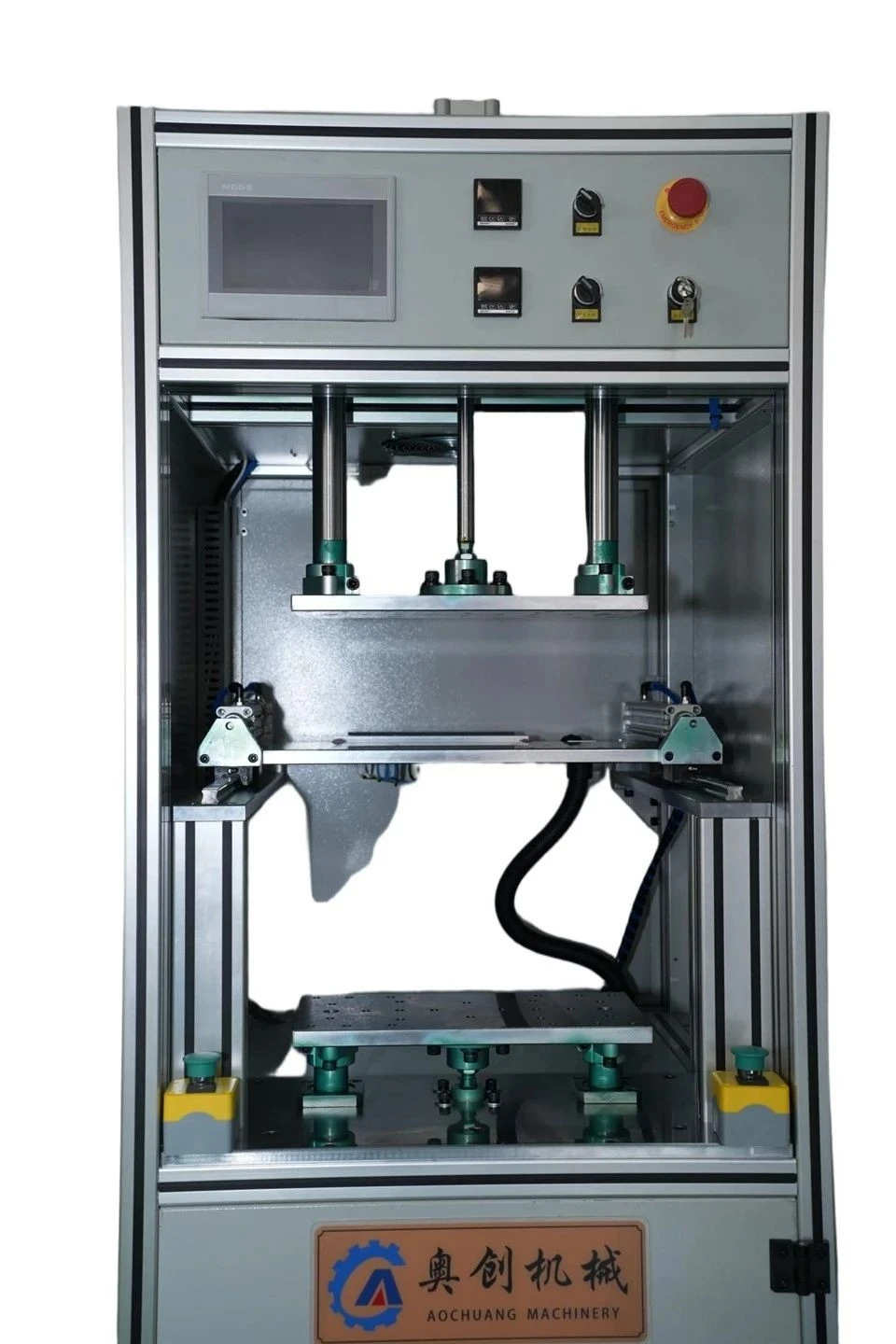

Our Q30 pneumatic thermal welding machine is developed for small and medium thermoplastic parts requiring stable hot plate welding and straightforward machine maintenance. The equipment uses compressed air to move the fixtures and hot plate. After the plastic surfaces are heated, the hot plate retracts and the parts are pressed together until the joint cools.

Send Inquiry

Product Introduction

Product Description

Our Q30 pneumatic thermal welding machine is developed for small and medium thermoplastic parts requiring stable hot plate welding and straightforward machine maintenance. The equipment uses compressed air to move the fixtures and hot plate. After the plastic surfaces are heated, the hot plate retracts and the parts are pressed together until the joint cools.

The compact structure makes the pneumatic thermal welding machine suitable for factories with limited production space. Temperature, air pressure, heating time, welding time, and cooling time can be adjusted through the control system. The Q30 pneumatic thermal welding machine can be equipped with single-cavity or multi-cavity fixtures, part-position sensors, slide tables, leak testers, and conveyor interfaces.

Specifications

Model series	Q30
Welding process	Pneumatic hot plate welding
Drive system	Pneumatic cylinder
Heating system	Temperature-controlled hot plate
Control system	PLC with touchscreen HMI
Adjustable parameters	Temperature, pressure, heating time, and cooling time
Tooling	Single-cavity or multi-cavity customized fixture
Loading method	Manual or semi-automatic
Safety system	Protective enclosure and emergency stop
Optional functions	Part sensors, leak testing, and conveyor connection

Applications

Automotive reservoirs and small air ducts
Appliance water boxes and plastic covers
Filter cartridges and filter housings
Electronic shells and waterproof enclosures
Plastic containers and packaging components
Small and medium plastic parts with continuous weld seams

Factory Strength

Our factory covers more than 7,000 square meters and has more than 60 employees. Production equipment includes engraving machines, milling machines, lathes, tapping machines, cleaning machines, sandblasting machines, saws, and chamfering machines.

Quality Control

Pneumatic cylinders, valves, heating zones, fixture alignment, PLC programs, and safety interlocks are tested before shipment. Every machine undergoes repeated trial operation and a 100% final inspection.

High Efficiency & Energy Saving

Rapid heating speeds significantly shorten cycle times. Energy is targeted precisely at the workpiece with minimal loss, offering superior sustainability compared to traditional systems.

Low Maintenance Cost

Without physical contact, there is no need to clean plastic residue from the heating plate. This dramatically reduces equipment downtime and long-term maintenance workload.

Precise Power Calibration

Infrared power and irradiation time can be finely adjusted, allowing for a more precise process window and uniform melting depth control with minimal internal stress.

Easy Operation

The equipment is designed for user-friendliness. This high-end automated model can complete complex infrared welding tasks after simple parameter setting, ensuring high workplace efficiency.
